【Product Name】2 Position 3 Way Solenoid Valve(Junction Box)
【Voltage】DC12V【Working Pressure】25~116Psi
【working principle】Valve stays open when the coil is de-energized- and it closes when energized.

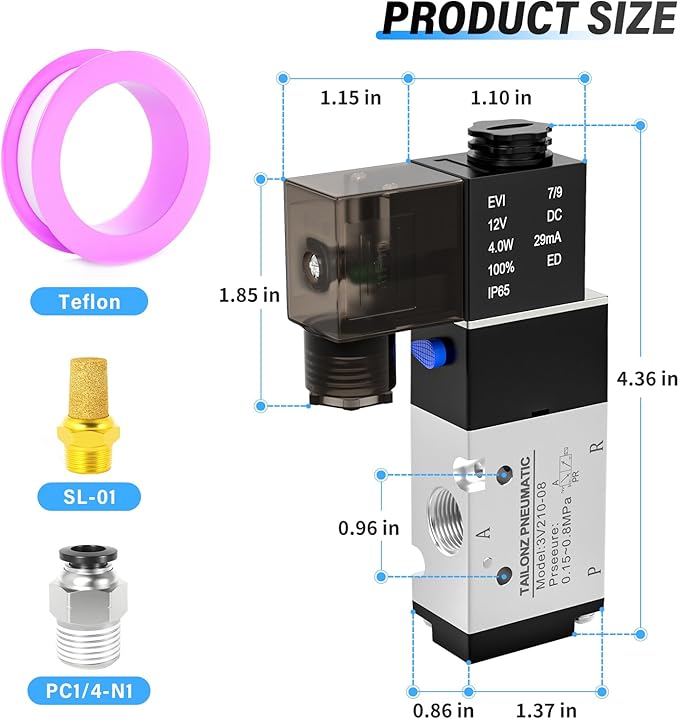

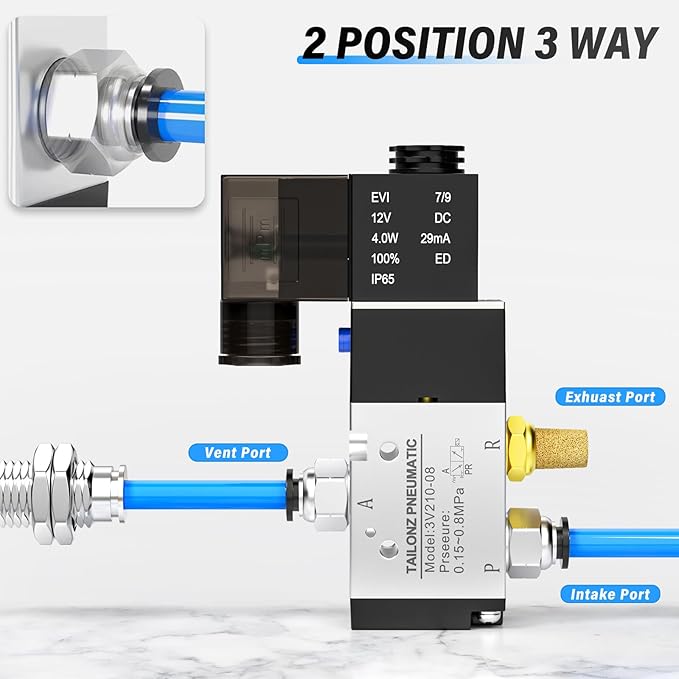

【Size】Outlet Port：1/4"NPT；Inlet Port：1/4"NPT；Exhaust Port：1/4"NPT.We provide pneumatic fittings, which can be used by directly connecting 1/4 or 6mm air tubes.
【Quick response 】High-quality solenoid valve pilot head, sensitive response, response speed 4 times per second, stable performance.
Overview
Material : Aluminum
Brand : TAILONZ PNEUMATIC
Exterior Finish : Aluminum
Inlet Connection Size : 0.25 Inches
Inlet Connection Type : National Pipe Tapered
Outlet Connection Type : NPT
Maximum Operating Pressure : 116 Pound per Square Inch
