About This

• Board test kits are used for user-friendly measuring DIP and devices of NanoVNA or other active analyzers

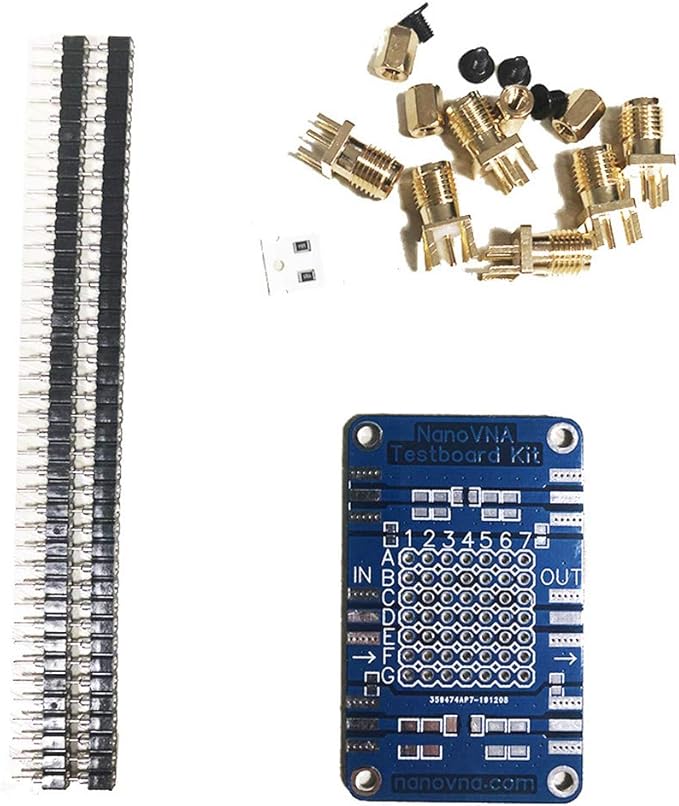

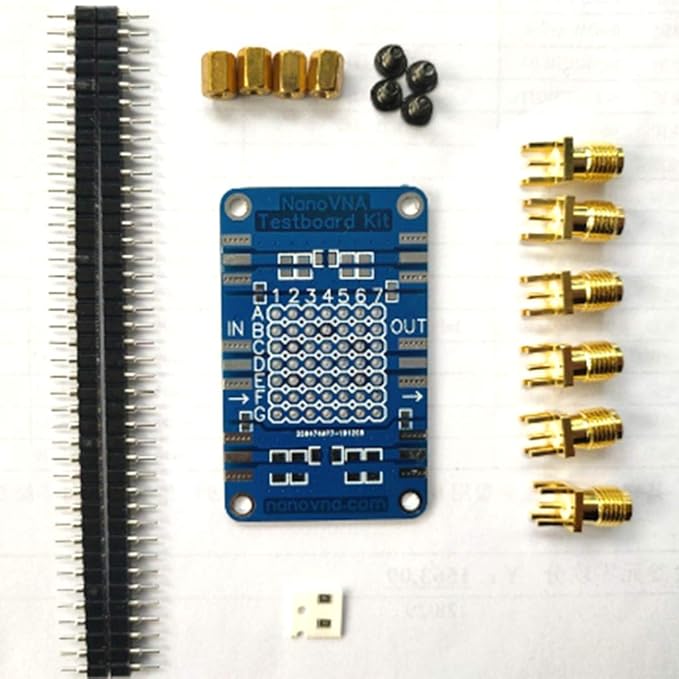

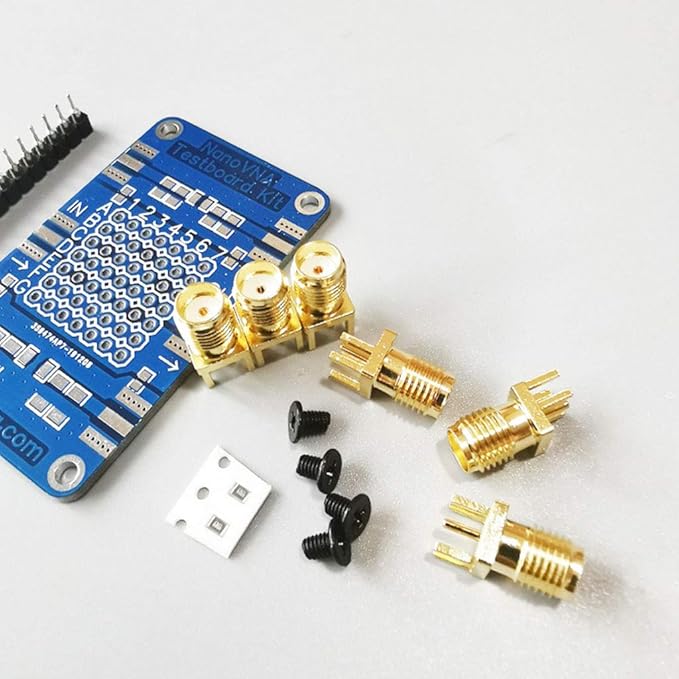

• This circuit board is not soldered before shipping. Bring your own soldering tool. Build a test circuit according to your testing needs
• Circuits do not fully consider various test conditions. You may need to cut over part of the test. Make sure you have enough hands-on ability

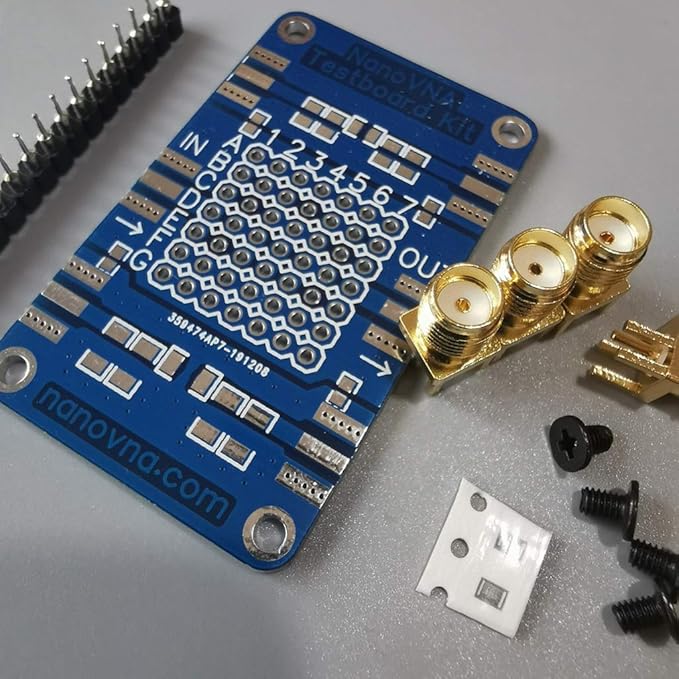

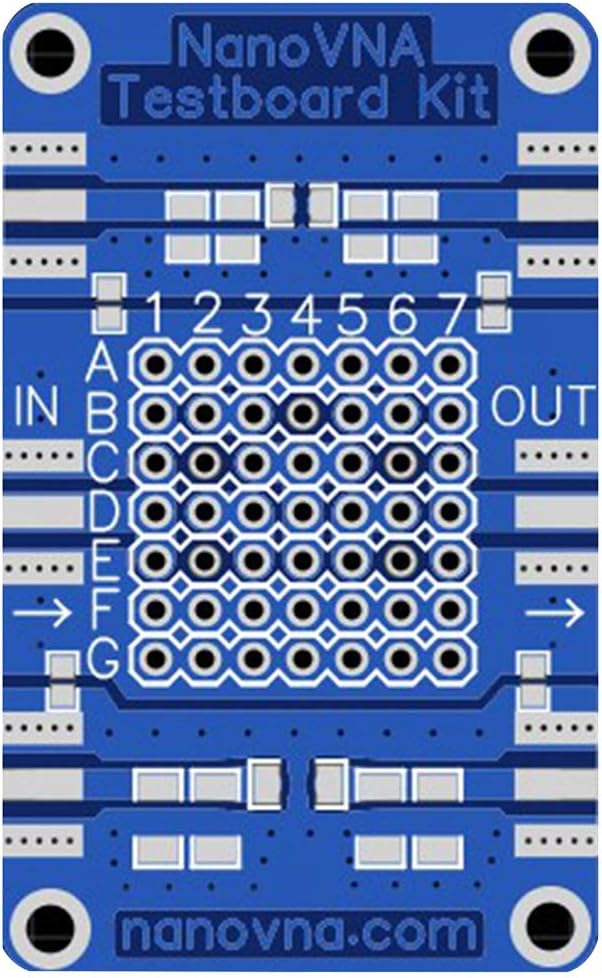

• This test board contains DIP test circuits that are compatible with VNWA test boards and includes a set of 0805 and 1206 patch test circuits

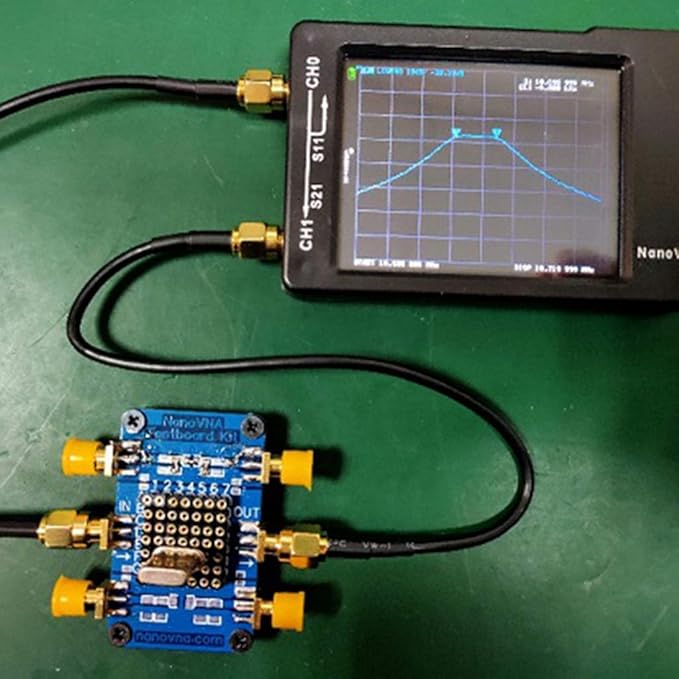

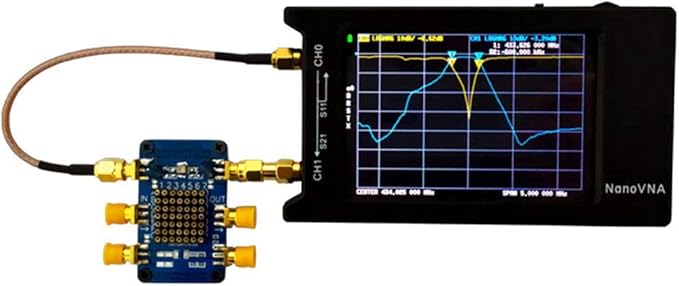

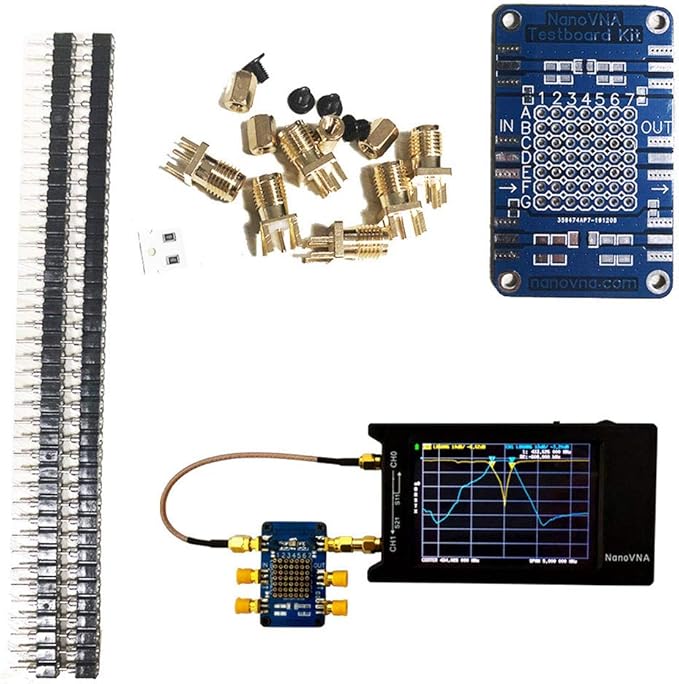

• NanoVNA users can use the test board kit to build handy component fixtures to quickly assemble simple circuits and evaluate their performance
