About This

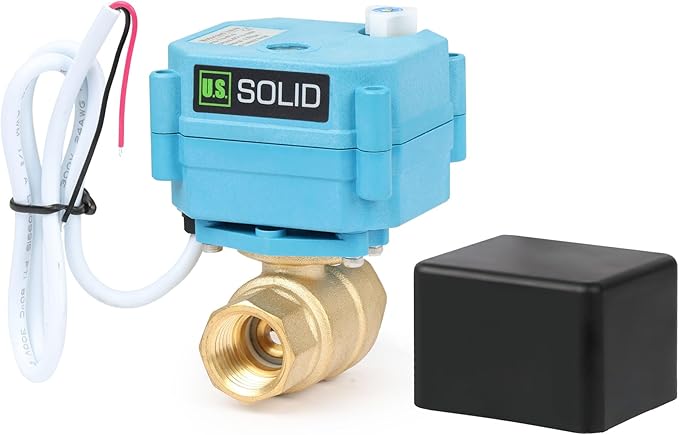

• IP67 and Waterproof Cover: The motorized ball valve is rated IP67, indicating its waterproof capability, suitable for outdoor use. Additionally, a protective housing is included in the package to shield the valves from rain, thereby extending their lifespan.

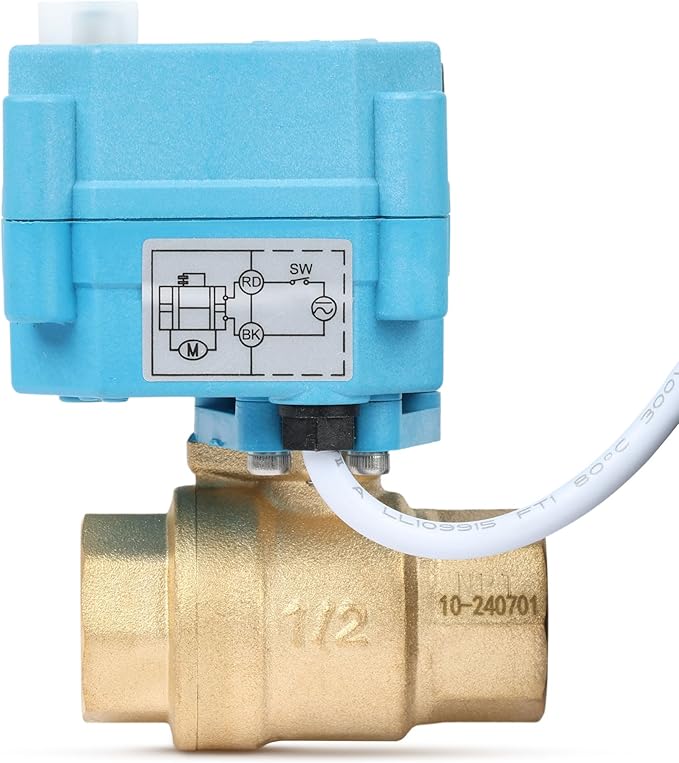

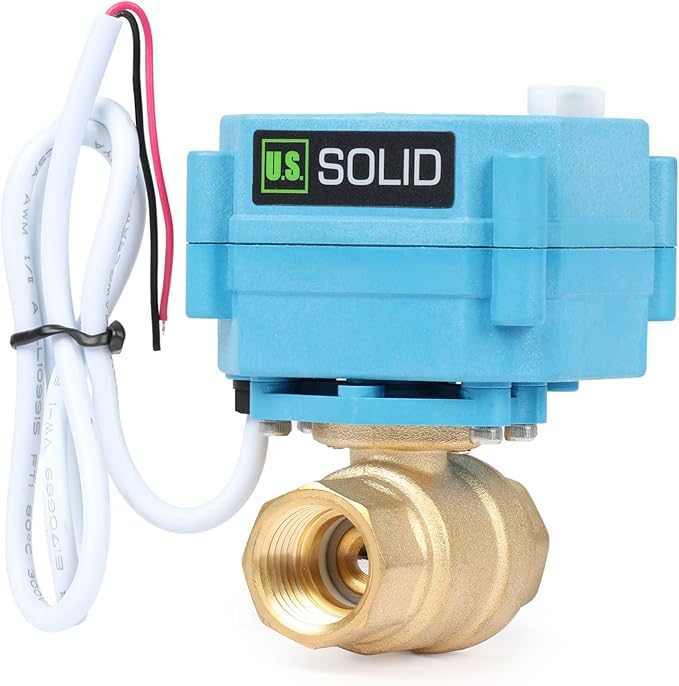

• 2-Wire Automatic Return Setup: Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed when power is removed.
• NPT THREADING: The threading on the ball valve adheres to the National Pipe Thread standards for manufacturing and measurement. This electrical ball valve is full port, effectively minimizing pressure loss through the valve, making it an ideal choice for home automation projects.
• SAFE AND RELIABLE: Constructed from brass, this ball valve boasts strength but is not suitable for use with drinking water. It offers a lifespan of at least 70,000 cycles, ensuring durability and reliability.

Overview

• Material : Brass
• Brand : U.S. Solid

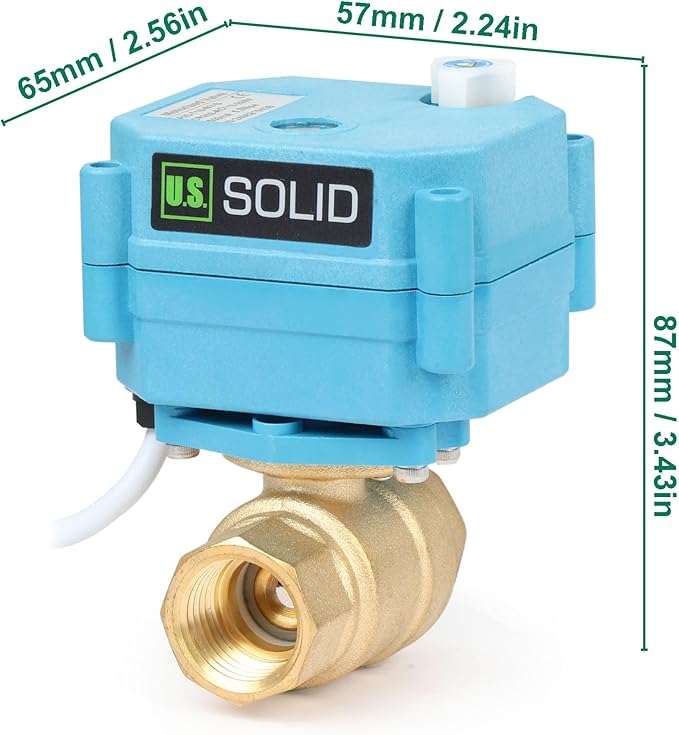

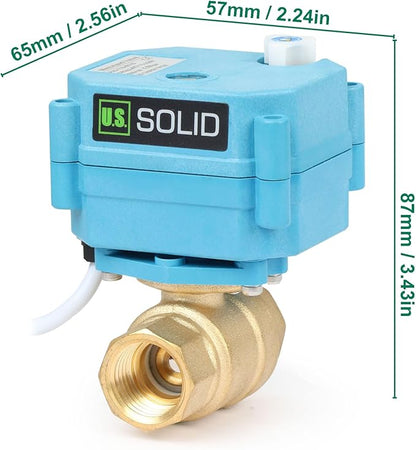

• Item dimensions L x W x H : 4.5 x 3.5 x 3 inches
• Exterior Finish : Brass
• Number of Ports : 2
• Specification Met : ASME B16.34, IP67
• Manufacturer : U.S. Solid
• UPC : 888107112396
